- Place of Origin: jiangsu
- Brand Name: Niupai
- Model Number: NPW400B
- Weight: 450.000 kg
Technical parameters
Reed space：150Cm-360cm
Max. RPM：700转/分（4/1组织、190cm门幅）
Heald frame spacing：14mm
Shedding unit：12片
Spec. of wire：280mm
Shedding amount：54mm-110mm
Weft picks：12纬
Gross weight：450kg

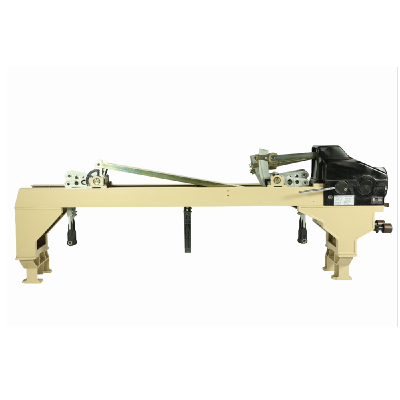

The application of top-mounted positive cam shedding device NPW400B to water-jet loom is pioneered by us in textile industry. The device, with 13 patents and annual productivity of more than 10,000, is sold well among more than 20 countries and regions because of its unique reliable leveling mode and high cost-effectiveness. It’s used as ancillary equipment by quite a lot of water-jet loom manufacturers and it can completely replace plain shedding device.
- Place of Origin: jiangsu
- Brand Name: Niupai
- Model Number: NPW400B
- Weight: 450.000 kg
